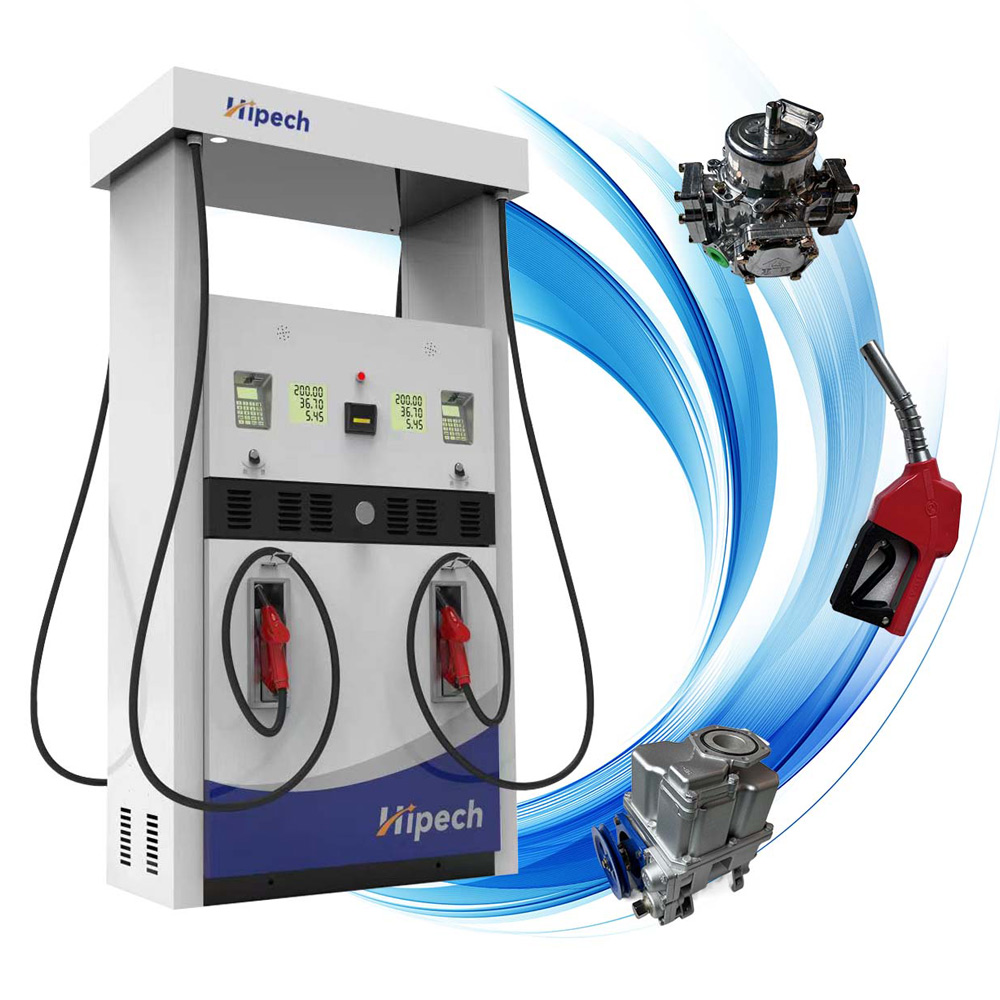

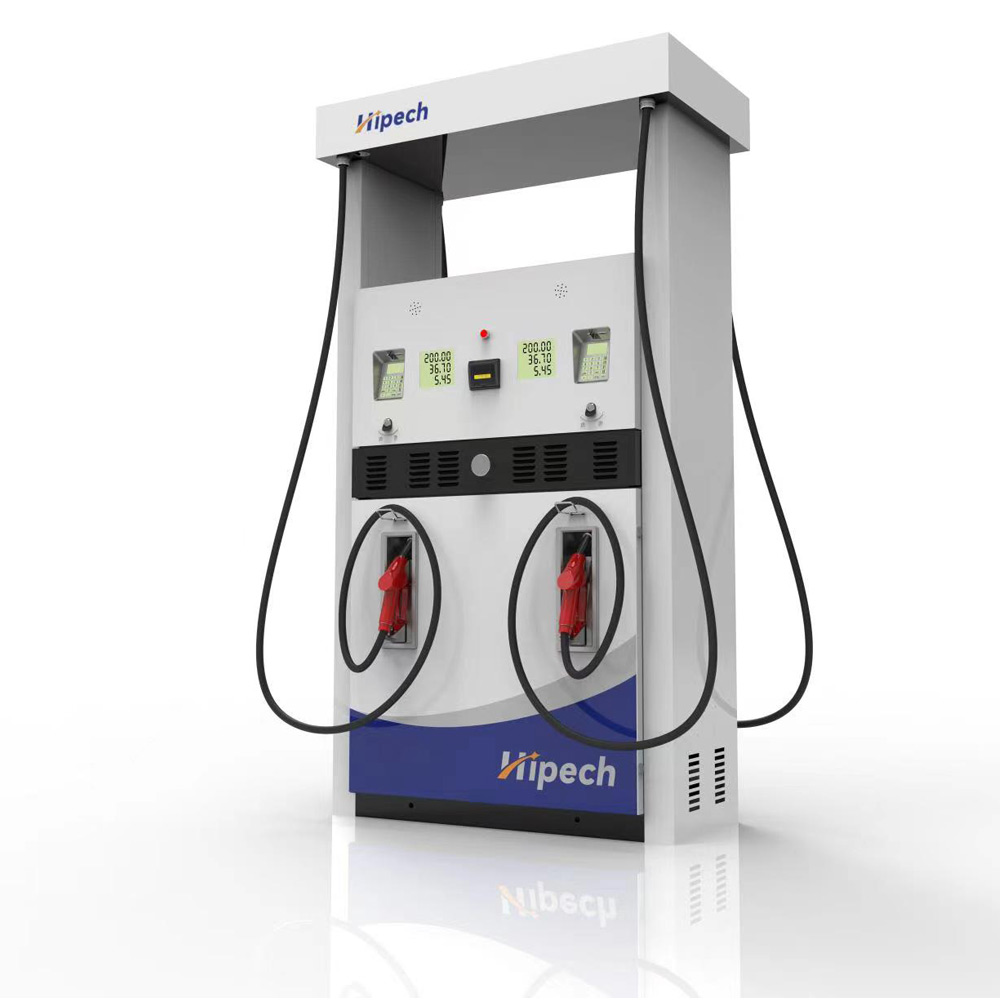

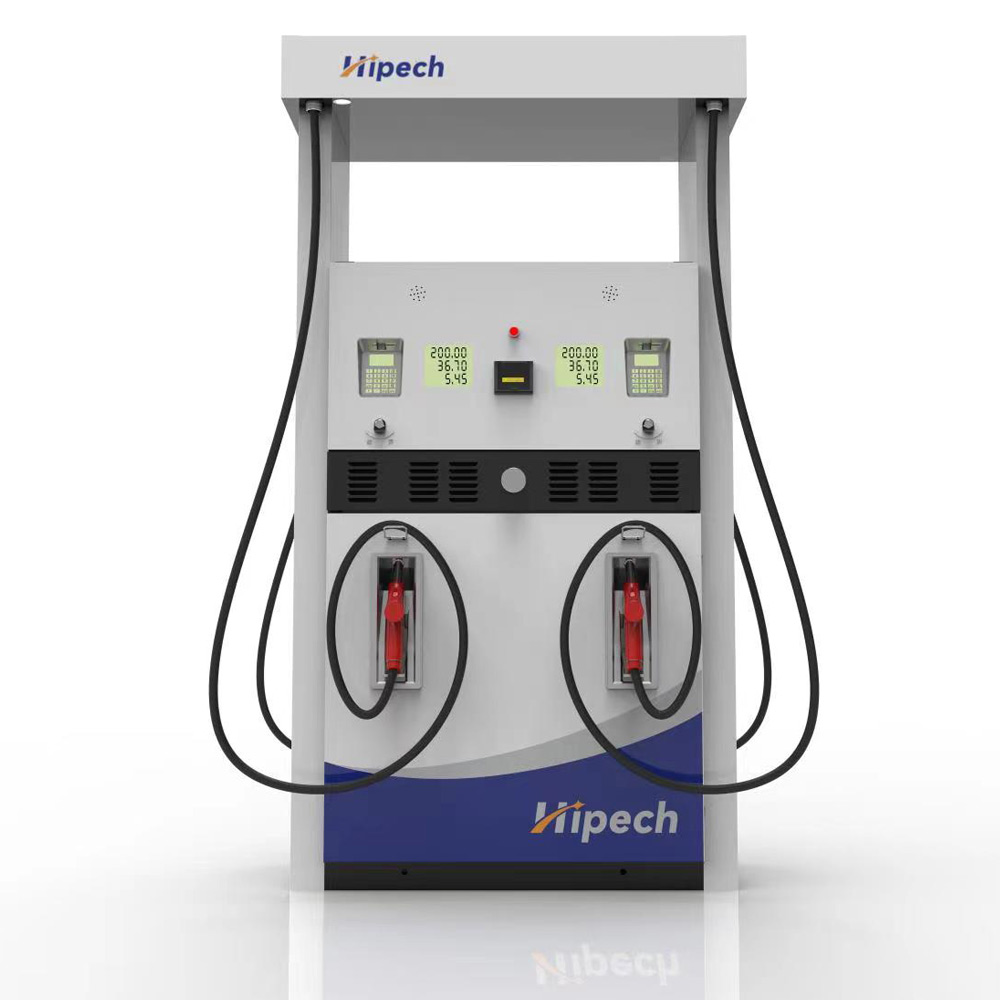

H3 Fuel Dispenser
Standard configuration of China supply petrol Diesel Fuel Pump Dispenser Fillig Station with good price :
1.Four nozzle two product with four displays (Option:1/2/3products;1/2/4/6/8 nozzles)
2.Submersible pump (Option:Suction Pump or Submersible Pump )
3.Four flowmeter
4.Four nozzle
5.4.5m length Xinfeiyu black fuel dispenser hose (Length and color is customized)
6.Nozzle holder
7.ESD device
8.Emergency stop switch
9.7-bit electronic counter
10.Motor: 380V or 220V
Price on request
REQUEST NOWSpare parts
Tatsuno Pump Advantage: ♦ Cost-effective gas station fuel dispenser pump solution ♦ High quality performance and accuracy ♦ Durable,stabilization,anti-wear and tear ♦ Easy to operation and maintenance |
|
| Flow Meter ♦Supertech brand Flow Meter ,whose material of the body is made of alloy alminum, with structure of strainless steel bush and four piston Positive Displacement. ♦Novel Appearance,Small Size,High Reliablity,High Precision, Firm Structure, Good Wearability,FM4 Flow Meter is built in intelligent pulser, 60 pulses or 100 pulses for option;but FM4 FlowMeter without pulser. |
Automatic Nozzle ♦Flow Rate:0-120L/m(113/16")/0-90L/m(1") ♦Working pressure: 0.18Mpa ♦Color:Red/Green/Blue/Yellow/Black/Gray ♦Body:Aluminum |
|
| 220V Motor ♦Voltage:220V 50Hz,single phase ♦Power:750W(1HP)/1KW ♦Function: offer power ♦Characteristic:Oil resistant ♦Advantage:stable quality |
380V Motor ♦Voltage:380V 50Hz,single phase ♦Power:750W(1HP)/1KW ♦Function: offer power ♦Characteristic:Oil resistant ♦Advantage:stable quality |
|
Technical Parameters
Item | Technical parameter |
Ambient temperature | -25℃~+55℃ |
Humidity | ≤95% |
Flow meter type | optional |
Flow meter accuracy | ≤0.3% |
Motor power capacity | 1HP（0.75kw） |
Nozzle | auto shut-off |
Repeating tolerance | ≤0.15% |
Suction distance | 6m |
Inlet pressure | ≥54kpa |
Outlet pressure | ≤0.3Mpa |
Voltage | 220v/380v |
Noise | ≤80dB |
Control type | solenoid valve control |
Pump flowrate | 55±5 |
Max flow | 80L/min |
Why choose us
1.Professional engineer team and technical department，we can do OEM.
2.12 months warranty period，comprehensive after-sales service.
3.Competitive price and excellent quality.
4.Own factory, 14 years of manufacturing experience.
5. Strong supply ability, on-time delivery
