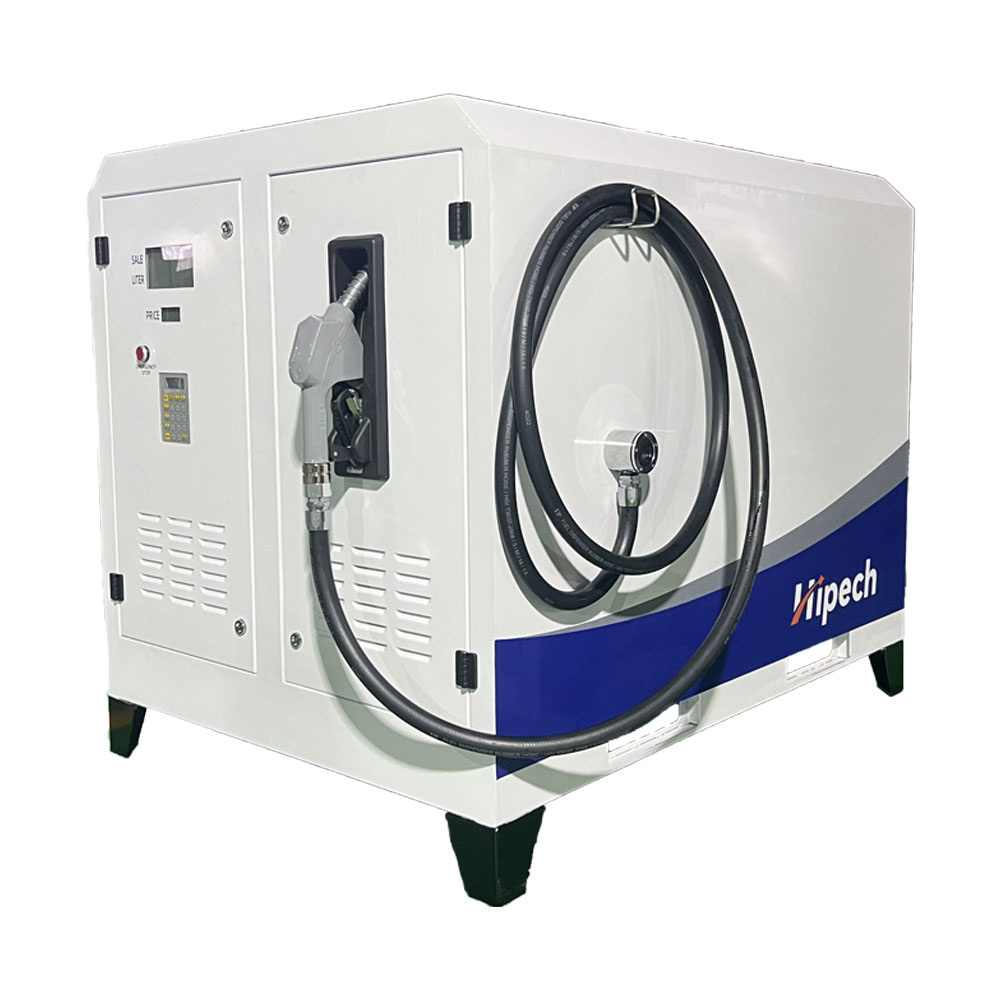

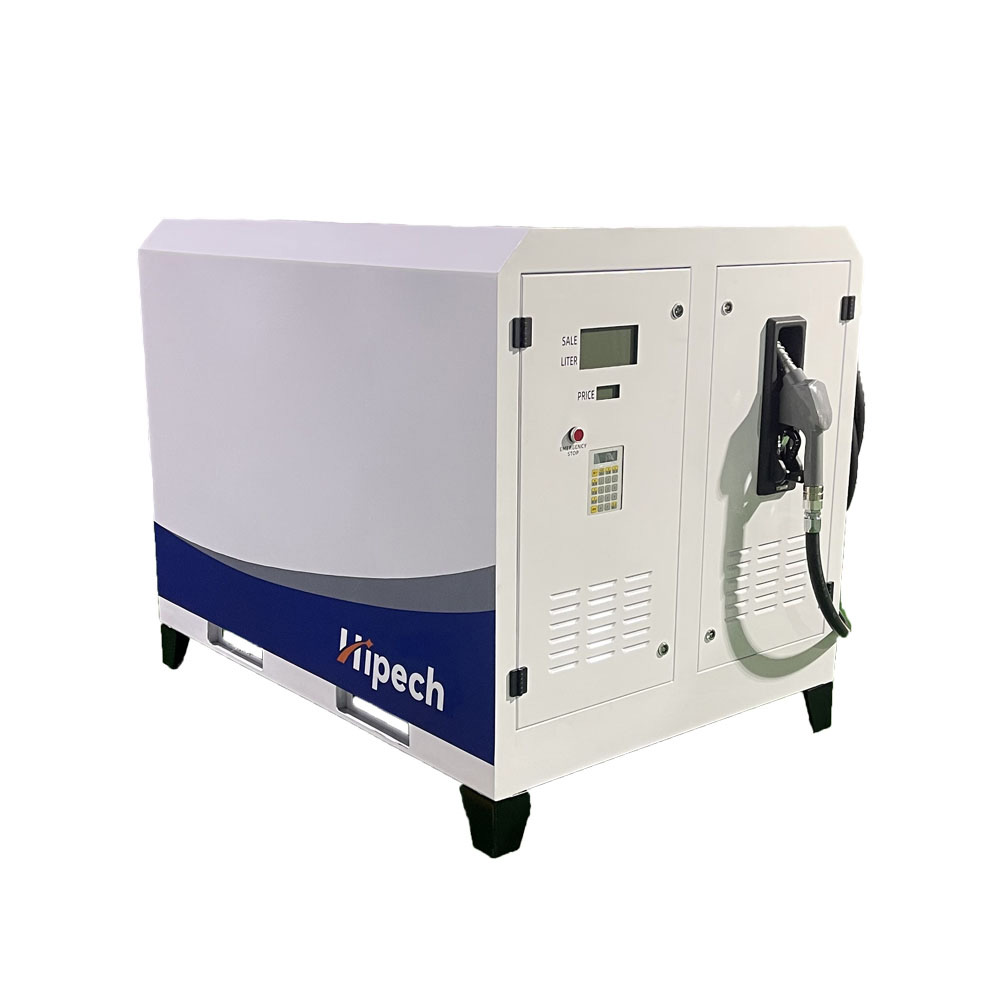

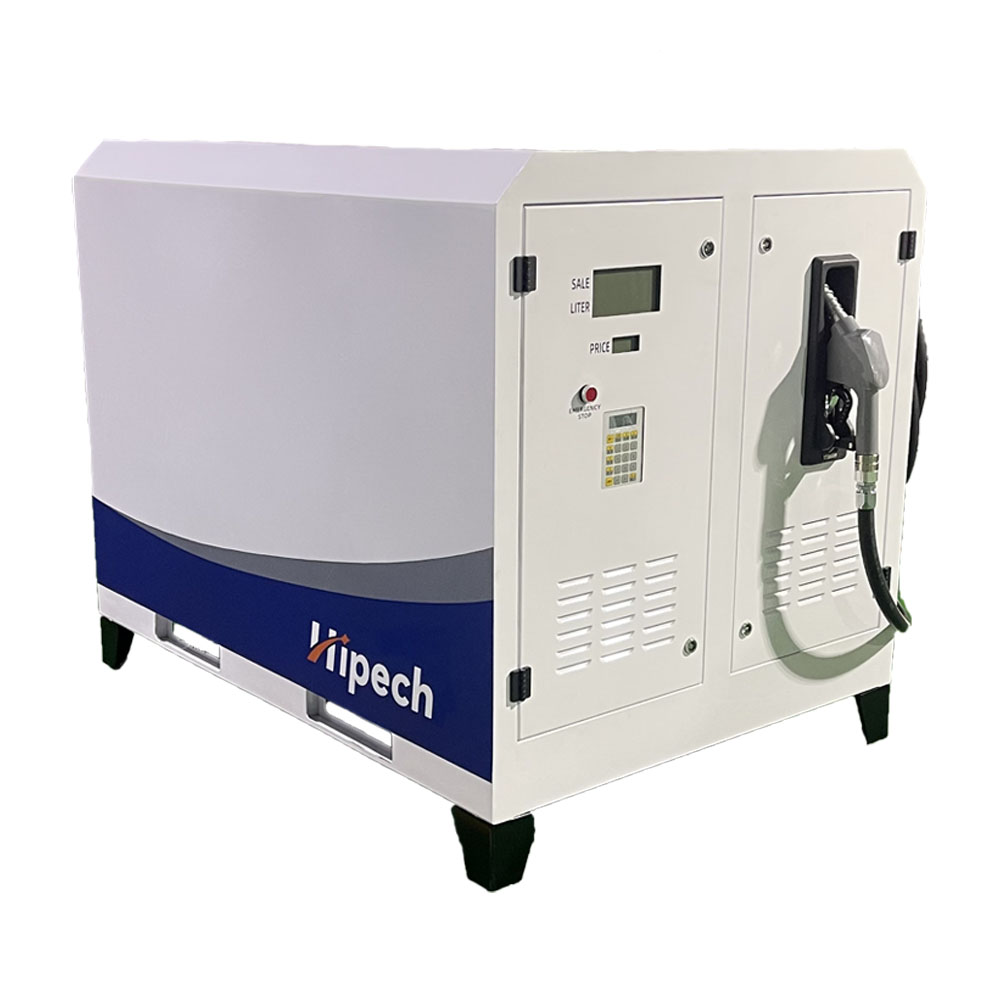

Mobile Gas Station-Fuel Station-

Spare parts

Tatsuno Pump

Advantage:

♦ Cost-effective gas station fuel dispenser pump solution

♦ High quality performance and accuracy

♦ Durable,stabilization,anti-wear and tear

♦ Easy to operation and maintenance

Flow Meter

♦Supertech brand Flow Meter ,whose material of the body is made of

alloy alminum, with structure of strainless steel bush and four piston Positive Displacement.

♦Novel Appearance,Small Size,High Reliablity,High Precision, Firm Structure,

Good Wearability,FM4 Flow Meter is built in intelligent pulser,

60 pulses or 100 pulses for option;but FM4 FlowMeter without pulser.

Automatic Nozzle

♦Flow Rate:0-120L/m(113/16")/0-90L/m(1")

♦Working pressure: 0.18Mpa

♦Color:Red/Green/Blue/Yellow/Black/Gray

♦Body:Aluminum

220V Motor

♦Voltage:220V 50Hz,single phase

♦Power:750W(1HP)/1KW

♦Function: offer power

♦Characteristic:Oil resistant

♦Advantage:stable quality

380V Motor

♦Voltage:380V 50Hz,single phase

♦Power:750W(1HP)/1KW

♦Function: offer power

♦Characteristic:Oil resistant

♦Advantage:stable quality

Technical Parameters

Item		Technical index	Item	Technical index
Measure	Accuracy	±0.30%	Capacity	1000-3000L
	Repeatability	≤0.15%	Medium	Petrol,Gasoline,Diesel,Kerosene
Flow rate		70L/min±5L	Working environment	-25℃ - +55℃
Accumulative counting range		0-9999999999.99 L or $	Relative humidity	30%-90%
Single counting range		0-9999.00 L or $	Incoming vacuum	54kPa
			Current	36A
Unit price range		0-99.99$/L	Nozzle	3/4” or 1” nozzle
			Hose	3/4” or 1” hose
